加工中心编程实例教学—第二篇

2017-07-18 | 作者:成海加工中心

看过上一篇的朋友应该对数控加工中心编程有了初步的了解,其实上一篇的内容是较为基础的零件加工程序。今天小编给大家整理的是较为复杂的编程实例教学,分别是型腔加工,钻孔、攻丝加工镗孔加工。让我们一起来看下吧。

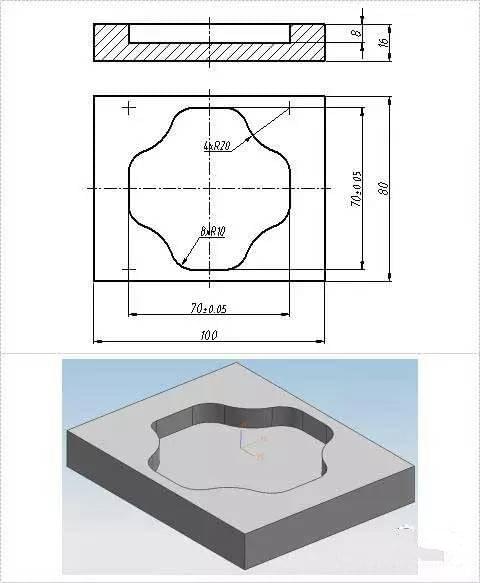

实例四 型腔加工

加工中心编程
参考程序:

(1)型腔内粗加工程序

O0001;(主程序)

G90 G40 G21 G94 G17;

G91 G28 Z0;

G90 G54 M3 S480;

G00 X0 Y0;

Z5.0 M08;

G01 Z0 F50;

M98 P0002 L02;

G00 Z20.0 M09;

G91 G28 Z0;

M30;

O0002;(子程序)

G91 G01 Z-4.0 F40;

G90 G01 X7.0 Y0 F48;

G03 I-7.0 J0;

G01 X19.0 Y0;

G03 I-19.0 J0;

G01 X0 Y0 F100;

M99;

(2)型腔内轮廓精加工程序

O0003;(主程序)

G90 G40 G21 G94 G17;

G91 G28 Z0;

G90 G54 M3 S480;

G00 X5.0 Y0;

Z5.0 M08;

G01 Z0 F80;

M98 P0004 L02;

G00 Z20.0 M09;

G91 G28 Z0;

M30;



O0004;(子程序)

G91 G01 Z-4.0 F80;

G90 G41 D01 G01 X20.0 Y-15.0 F48;

G03 X35.0 Y0 R15.0;

G01 Y6.7157;

G03 X28.3333 Y16.1438 R10.0;

G02 X16.1438 Y28.3333 R20.0;

G03 X6.7157 Y35.0 R10.0;

G01 X-6.7157;

G03 X-16.1438 Y28.3333 R10.0;

GO2 X-28.3333 Y16.1438 R20.0;

G03 X-35.0 Y6.7157 R10.0;

G01 Y-6.7157;

G03 X-28.3333 Y-16.1438 R10.0;

G02 X-16.1438 Y-28.3333 R20.0;

G03 X-6.7157 Y-35.0 R10.0;

G01 X6.7157;

G03 X16.1438 Y-28.3333 R10.0;

G02 X28.3333 Y-16.1438 R20.0;

G03 X35.0 Y-6.7157 R10.0;

G01 Y0;

G03 X20.0 Y15.0 R15.0;

G40 G01 X5.0 Y0;

M99;

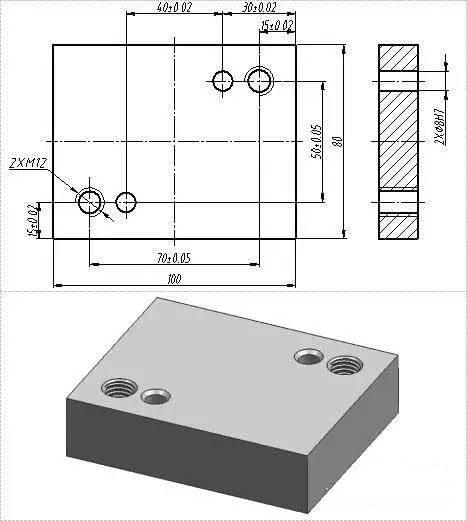

实例五 钻孔、攻丝加工

加工中心编程
参考程序:

O0001;

G91 G28 Z0;

M06 T1;

G90 G17 G49 G21 G94;

G54 M3 S1200;

G00 X20.0 Y100.0 M08;

G43 H01 G00 Z50.0;

G99 G81 X-15.0 Y65.0 Z-4.0 R5.0 F80;

G98 X-30.0;

G00 X-120.0;

Y15.0;

G99 G81 X-85.0 Y15.0 Z-4.0 R5.0 F80;

G98 X-70.0;

G91 G28 Z0 M09;

M06 T02;

G90 G49 G54 M3 S550;

G00 X20.0 Y100.0 M08;

G43 H02 G00 Z50. ;

G99 G73 X-15.0 Y65.0 Z-20.0 R5.0 Q2.0 F60;

G98 X-30.0;

G00 X-120.0;

Y15.0;

G99 G73 X-85.0 Y15.0 Z-20.0 R5.0 Q2.0 F60;

G98 X-70.0;

G91 G28 Z0 M09;

M06 T03;

G90 G49 G54 M3 S500;

G00 X20.0 Y100.0 M08;

G43 H03 G00 Z50. ;

G98 G83 X-30.0 Y65.0 Z-21.0 R5.0 Q2.0 F60;

G00 X-120.0;

Y15.0;

G98 G83 X-70.0 Y15.0 Z-21.0 R5.0 Q2.0 F60;

G91 G28 Z0 M09;

M06 T04;

G90 G49 G54 M3 S450;

G00 X20.0 Y100.0 M08;

G43 H04 G00 Z50. ;

G98 G81 X-15.0 Y65.0 Z-21.0 R5.0 F50;

G00 X-120.0;

Y15.0;

G98 G81 X-85.0 Y15.0 Z-21.0 R5.0 F50;

G91 G28 Z0 M09;

M06 T05;

G90 G49 G54 M3 S350;

G00 X20.0 Y100.0 M08;

G43 H05 G00 Z50.0;

G99 G82 X-15.0 Y65.0 Z-6.0 R5.0 P2000 F60;

G98 X-30.0;

G00 X-120.0;

Y15.0;

G99 G82 X-85.0 Y15.0 Z-6.0 R5.0 P2000 F60;

G98 X-70.0;

G91 G28 Z0 M09;

M06 T06;

G90 G49 G54 M3 S50;

G00 X20.0 Y100.0 M08;

G43 H06 G00 Z50.0;

G98 G85 X-30.0 Y65.0 Z-18.0 R5.0 F40;

G00 X-120.0;

Y15.0;

G98 G85 X-70.0 Y15.0 Z-18.0 R5.0 F40;

G91 G28 Z0 M09;

M06 T07;

G90 G49 G54 M3 S100;

G00 X20.0 Y100.0 M08;

G43 H07 G00 Z50.0;

G98 G84 X-15.0 Y65.0 Z-19.0 R5.0 F175;

G00 X-120.0;

Y15.0;

G98 G84 X-85.0 Y15.0 Z-19.0 R5.0 F175;

G91 G28 Z0 M09;

M30;

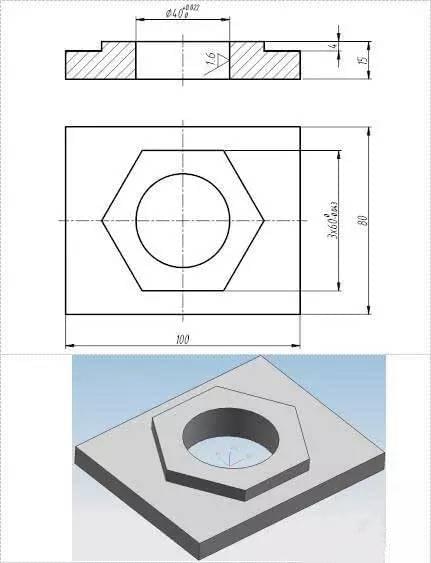

实例六 镗孔加工

加工中心编程
参考程序:

O0001;

G91 G28 Z0;

M06 TO1;

G90 G94 G49 G17 G40 G21;

G54 M03 S400;

G43 H01 G00 Z50.0 M08;

X-46.0 Y55.0;

Z5.0;

G01 Z-4.0 F80;

Y-55.0 F60;

X46.0 F1000;

Y55.0 F60;

G41 D01 G01 X17.321 Y30.0 F60;

X34.641 Y0;

X17.321 Y-30.0;

X-17.321;

X-34.641 Y0;

X-17.321 Y30.0 ;

X-20.0;

G40 G01 X65.0 Y55.0 F300;

G91 G28 Z0 M09;

M06 T03;

G90 G54 G49 G40 M03 S1200;

G43 H03 G00 Z50.0 M08;

G98 G81 X0 Y0 Z-4.0 R5.0 F60;

G91 G28 Z0 M09;

M06 T04;

G90 G54 G49 G40 M03 S500;

G43 H04 G00 Z50.0 M08;

G98 G81 X0 Y0 Z-20.0 R5.0 F60;

G91 G28 Z0 M09;

G28 X0 Y0;

M06 T05;

G90 G54 G49 G40 M03 S350;

G43 H05 G00 Z50.0 M08;

G98 G73 X0 Y0 Z-22.0 R5.0 Q2.0 F50;

G91 G28 Z0 M09;

G28 X0 Y0;

M06 T06;

G90 G54 G49 G40 M03 S250;

G43 H06 G00 Z50.0 M08;

G98 G73 X0 Y0 Z-25.0 R5.0 Q2.0 F45;

G91 G28 Z0 M09;

G28 X0 Y0;

M06 T07;

G90 G54 G49 G40 M03 S200;

G43 H07 G00 Z50.0 M08;

G98 G73 X0 Y0 Z-26.0 R5.0 Q2.0 F40;

G91 G28 Z0 M09;

M06 T02;

G90 G54 G49 G40 M03 S800;

G43 H02 G00 Z50.0 M08;

X46.0 Y55.0;

Z5.0;

G01 Z-4.0 F80;

G41 D02 G01 X17.321 Y30.0 F60;

X34.641 Y0;

X17.321 Y-30.0;

X-17.321;

X-34.641 Y0;

X-17.321 Y30.0;

X-20.0;

G40 G01 X65.0 Y55.0 F300;

G91 G28 Z0 M09;

M06 T08;

G90 G54 G49 G40 M03 S800;

G43 H08 G00 Z60.0 M08;

G98 G85 X0 Y0 Z-17.0 R5.0 F60;

G91 G28 Z0 M09;

M06 T09;

G90 G54 G49 G40 M03 S1500;

G43 H09 G00 Z60.0 M08;

G98 G85 X0 Y0 Z-17.0 R5.0 F50;

G91 G28 Z0 M09;

G28 X0 Y0;

M30;
